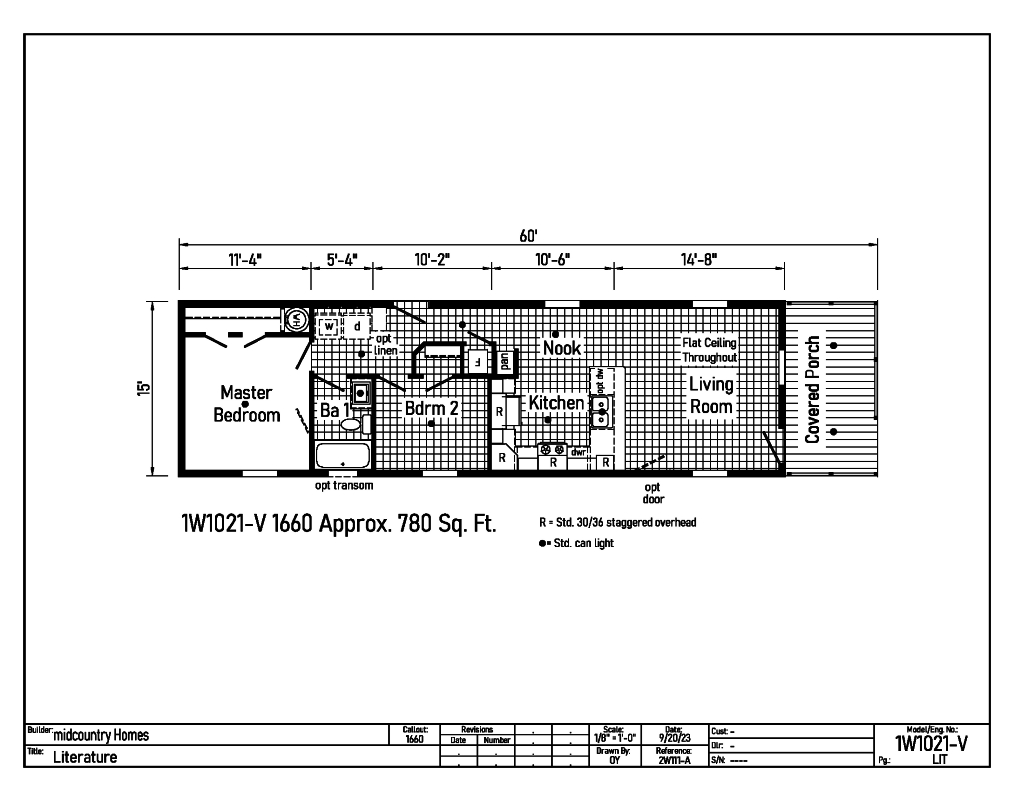

Westlake Single Section
  • 1W1021-V
  • Single
  • 780
  • 2
  • 1


Standards & Features

Westlake Single Section Standard Features


Primed Drywall Throughout Orange Peel Finish
8’-0” Flat Ceiling Orange Peel Finish
Recessed LED Lights
Pendant Dining Room Light
2-Panel White Painted Craftsman Interior Doors
Pre-Hung Doors with Mortise Hinges
Metal Interior Passage Sets
Window Valances
1” Mini Blinds Throughout
Smoke Detectors with Battery Back-Up
Wire Shelving in Closets
White Painted Mouldings Throughout
Flat 2 1/4” Window and Door Casing
Flat 3 1/2” Baseboards


Black Gatsby Light at Front and Rear Door
Vinyl Dutch Lap Siding
Vinyl Insulated Windows with Low-E Glass
Lineals Front Door Side
GFI-Protected Exterior Receptacle at Each Door
O.S.B. Wall & Roof Sheathing Fixed Roof
12” Overhangs and Eaves (Ranch)
4” Overhangs and 12” Eaves (Single)
3-Tab Shingles
Ridge Vent Roof Ventilation System
Ice Shield
3/0x6/8 Fiberglass 6-Panel Front and Rear
   Door w/ Deadbolt Keyed Alike Locksets


Transverse Floor System on 16” Center*
3/4” OSB Decking*
2x6 Floor Joist on 14 and 28 Wide Models
2x8 Floor Joists on 16 and 32 Wide Models
2x6 Exterior Walls on 16” Center*
82” Window Headers
30# Roof Load


Empire Brushed Nickel High Rise Faucet
Stainless Steel Sink 33x22x8
One USB Receptacle
30” Black Free-Standing Gas Range
Power Range Hood with Fan and Light
18 Cu. Ft. Black Frost-Free Refrigerator w/Top Freezer


60” Fiberglass Tub/Showers Tub/Shower Curtain and Curved Rod
Dual Flush Elonated Hi-Rise Toilets
China Stool, Tank, and Lid
Square China Sinks with Overflow and Pop-Up Drain
Bevel Edge Mirrors
Empire Brushed Nickel Faucets
Anti-Scald Valves on Showers and Tubs


KCMA Certified Cabinets
Hardwood Wrapped Mission Cabinet Doors with Full Overlay
Hardwood Wrapped Cabinet Face Frames and Stiles
5-Piece Drawer Fronts
Brushed Nickel Cabinet Pulls Hardware
Soft Close Hidden Cabinet Hinges
Base and Wall Cabinets with Adjustable Shelves
100# Undermount Soft Close Drawer Guides
Laminate Countertops with Crescent Edge
4” Laminate Backsplash
36” High Vanities


Wire Shelving in Closets
Switched Light in All Walk-In Closets


Take Away Shaw Carpet with ShawGuard Carpet Protector
Rebond Carpet Pad with Tackstrip Carpet Installation
Shaw Vinyl Floor Coverings


100 AMP Electrical Service
Plumb and Wire for Washer
Wire and Vent for Dryer
Water Shut Offs Throughout
Main Water Shut-Off
One Exterior Water Faucet (Frost Free)
30 Gallon Electric Water Heater with Pan
Gas Furnace
5-Wire Thermostat
Copper Wiring Throughout


Ceiling R-30 Avg. Blown Insulation
Walls R-19 Fiberglass Insulation
Floor R-11 Fiberglass Insulation

**Spacing for Framing Members may vary
due to Design Requirements
