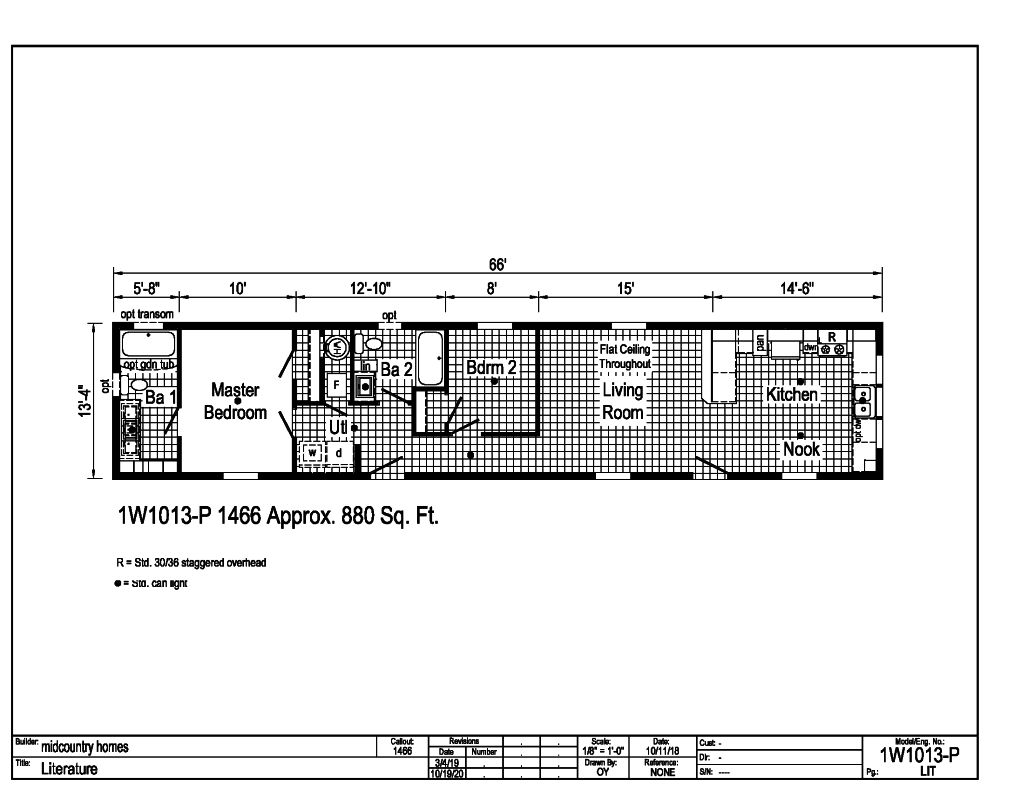

Westlake Single Section
  • 1W1013-P
  • Single
  • 880
  • 2
  • 2


Standards & Features

Westlake Single Section Standard Features

Primed Drywall Throughout - Orange Peel Finish
8’-0” Flat Ceiling - Orange Peel Finish
Alabaster Glass Pendant Light in Nook
2-Panel White Painted Craftsman Interior Doors
Pre-Hung Doors with Mortise Hinges
Metal Interior Passage Sets
Window Valances
1” Mini Blinds Throughout
Smoke Detectors with Battery Back-Up
Wire Shelving in Closets
White Painted Mouldings Throughout

Patina Coach Light at Front Door
Patina Lantern Light at Rear Door
Vinyl Dutch Lap Siding
Vinyl Insulated Windows with Low-E Glass
Lineals on Hitch End & Front Door Side
One GFI-Protected Exterior Receptacle
O.S.B. Sheathing
Fixed Roof
4” Overhangs
12” Eaves
3-Tab Shingles
Ridge Vent Roof Ventilation System
Ice Shield
3/0x6/8 Steel 6-Panel Front and Rear Door w/ Deadbolt
Keyed Alike Locksets

Transverse Floor System on 16” Centers
   with 3/4” OSB Decking**
     2x6 Floor Joist on 14 Wide Models
     2x8 Floor Joist on 16 Wide Models
2x6 Exterior Walls on 16” Centers
82” Windows Headers
30# Roof Load

Brushed Nickel Ceiling Fixture
Empire Brushed Nickel High Rise Faucet with Sprayer
Stainless Steel Sink 33x22x8
One USB Receptacle
30” Free-Standing Gas Range
Power Range Hood with Fan and Light
18 Cu. Ft. Frost-Free Double Door Refrigerator

60” Fiberglass Tub/Showers
Tub/Shower Curtain and Curved Rod
1.6 Gallon Per Flush Elongated Toilets
China Stool, Tank, and Lid
China Sinks with Overflows and Pop-Up Drains
Bevel Edge Mirrors
Brushed Nickel Strip Light over Bath Vanities
Empire Brushed Nickel Faucets
Anti-Scald Valves on Showers and Tubs

KCMA Certified Cabinetry
Hardwood Mission Cabinet Doors with Full Overlay
Hardwood Cabinet Face Frames and Stiles
Brushed Nickel Cabinet Hardware
Hidden Cabinet Hinges
30”/36” Staggered Overhead Cabinets
Center Shelf in Base Cabinets
Adjustable Shelves in Overhead Cabinets
75# Undermount Drawer Guides
Laminate Countertops with Crescent Edge
4” Laminate Backsplash
36” High Vanities with Base Shelf

Switched Receptacles
Wire Shelving in Wardrobes
Switched Light in All Walk-In Closets

Choice of Mantra or It”s Cozy SHAW
   Carpet with ShawGuard CarpetProtector
Rebond Carpet Pad with Tackstrip Carpet Installation
LuxFlor No-Wax Vinyl Floor Coverings

100 AMP Electrical Service
Plumb and Wire for Washer
Wire and Vent for Dryer
Main Water Shut-Off Valve
Exterior Water Faucet
30 Gallon Electric Hot Water
   Heater with Pan
Air Ready Gas Furnace
5-Wire Thermostat
Copper Wiring Throughout
Nail on Boxes

R-11 Fiberglass Insulation in Floor
R-19 Fiberglass Insulation in Walls
R-30 Avg. Blown Insulation in Ceiling

**Spacing for Framing Members may vary
due to Design Requirements
